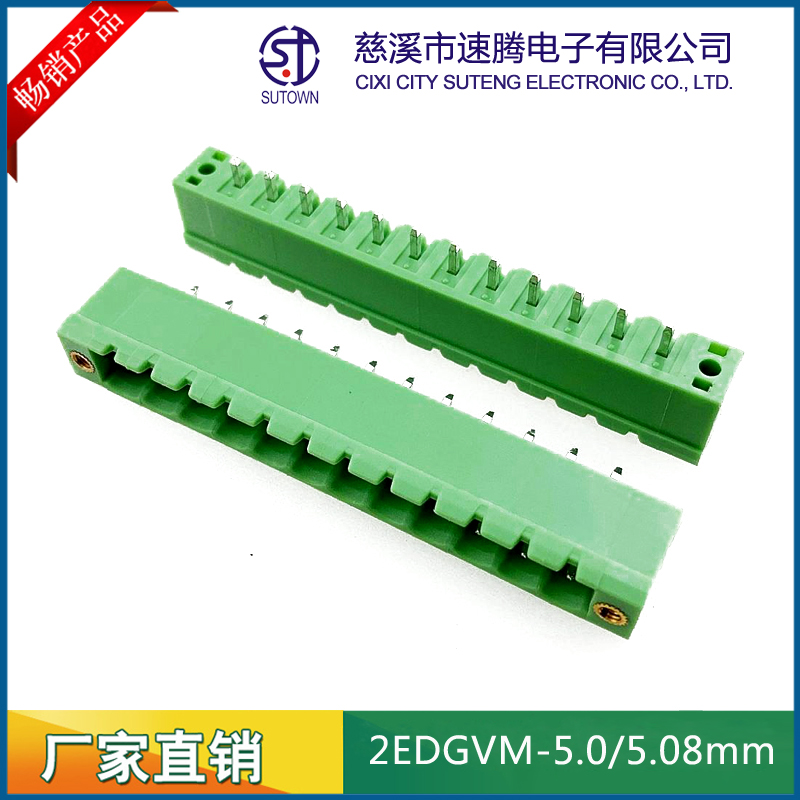

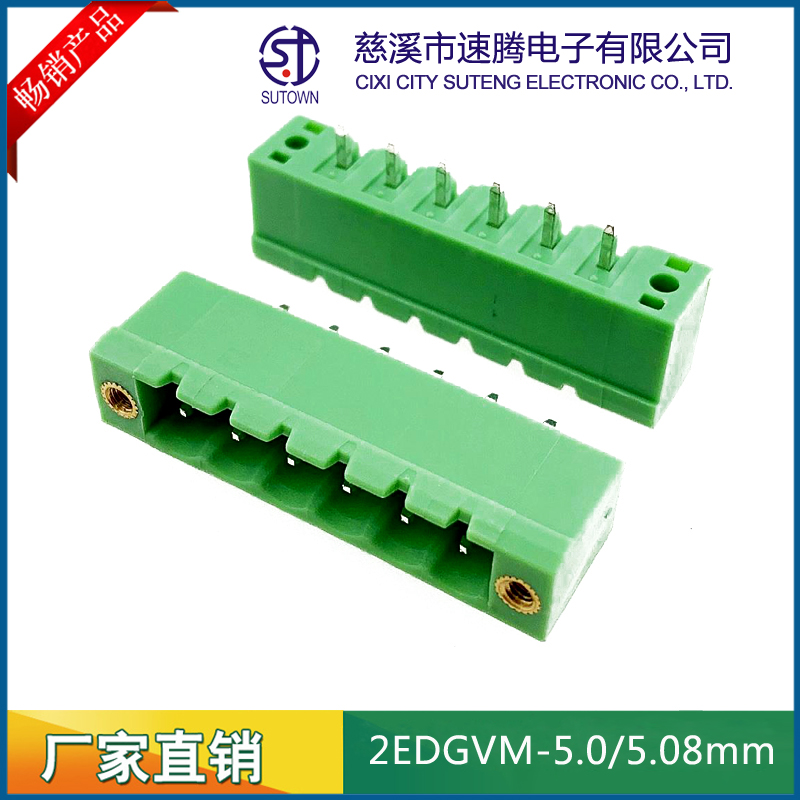

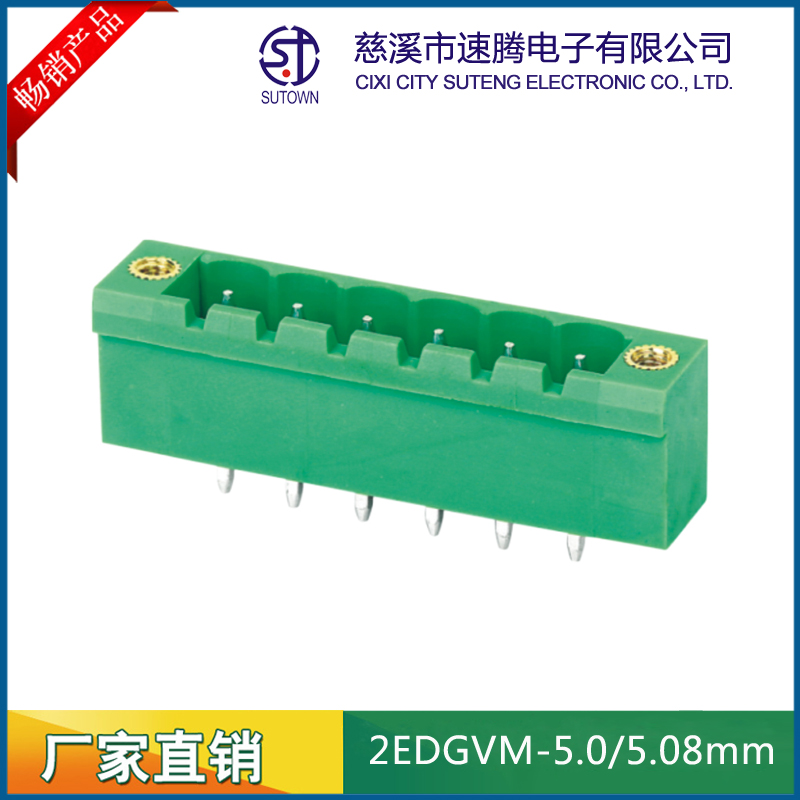

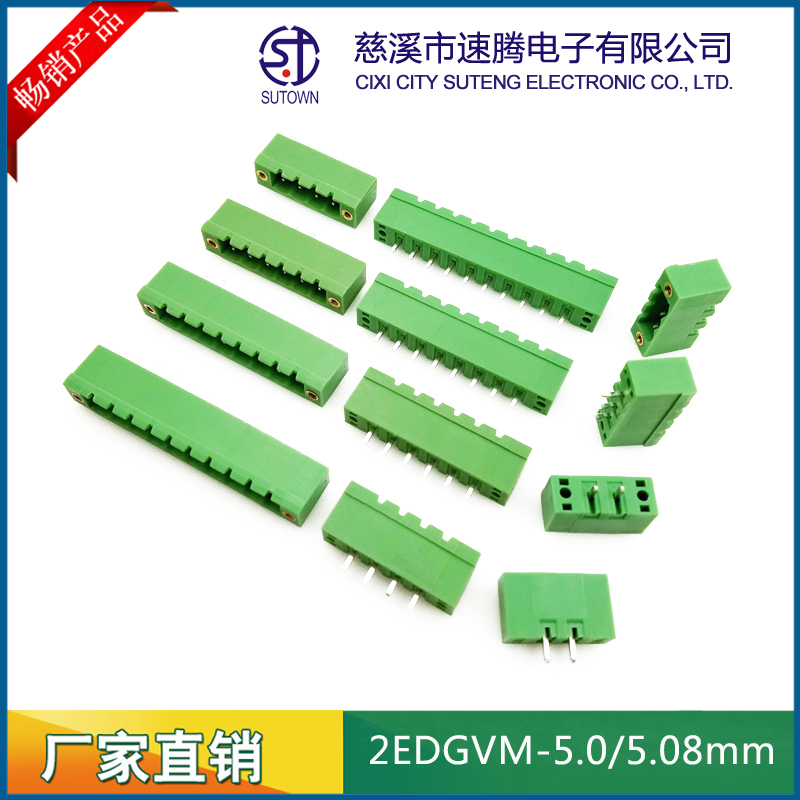

Medel： ST2EDGVM-5.0/5.08
Pitch：5.0/5.08mm
Material and Plating
Spacing:5.0/5.08mm
Plastic parts;PA66,UL94V-0
Cage:Brass,Tin plating
Screw:M3.0,Steel,Zn Plating
Terminal：Phosphor bronze，Nickel plating
Electrical performance
Rated voltage：300V
Rated current：15A
Ambient temperature:-40℃~+105℃
MAX Soldering:+250℃,5s
Withstanding Voltage:AC2500V/1Min
Contact resistance:20mΩ
Insulation resistance:5000MΩ/1000V
Wire diameter:28-12AWG 2.5mm2
Torque:0.4Nm
Strip length:7-8mm
